Every feature in Aksorn3D
all 85 of them on one page
Everything the software can do, grouped into 4 categories in the order you actually work: import your text, choose the structure, tune it to your material, and finish with files that go straight to a 3D printer or cutting machine. Every image on this page is a real screenshot from the software, not a mockup.
STL · DXF · 3MF · SVG
Pick a category
The categories follow the order you work in. Click an image to see the full screenshot, or use the link under each description to open that feature in the software.
Core tools — import, adjust and inspect the model
The tools every job uses, from typing text or uploading a file through to inspecting the 3D model and previewing the lighting before anything goes into production.
Upload SVG
Import a logo or vector lettering from an .svg file to build the 3D model from.
Open the software →Import an image
Accepts PNG, JPG or SVG and converts a logo or flat-colour artwork into a multi-colour relief model.
Open the software →Choose a typeface
Pick from several ready-made fonts that support Thai, English and Vietnamese.
Open the software →Upload your own font
Import a .ttf or .otf font file to build 3D letters in the exact typeface the job needs.
Open the software →Letter height
Set the real letter height in millimetres and see the model size update instantly.
Open the software →Letter spacing
Increase or reduce the gap between letters in millimetres to suit the sign.
Open the software →Generate the 3D model
Turns your text and settings into a three-dimensional piece and reports the real dimensions.
Open the software →Model colour
Pick a sample colour from the palette or set your own to judge the piece as a whole.
Open the software →Model edge lines
Turn on edge lines to see surfaces, seams and assembly ledges on the model more clearly.
Open the software →Night lighting preview
Simulates the lit sign in a dark scene, with brightness, light colour and effects such as fade, rainbow and blink.
Open the software →Explode the layers
Slides the material layers apart so you can see the structure and the assembly order.
Open the software →Reset the camera
Returns the view angle and zoom to their starting position after you have moved the model around.
Open the software →Show or hide the grid
Shows or hides the reference grid under the model to help judge position and viewing angle.
Open the software →Show or hide parts
Toggle the letter walls, mirror, LED tubes and back cover separately to inspect each layer.
Open the software →Recolour parts
Set a colour per layer to simulate materials and check how the piece is split up.
Open the software →3D model size
Shows the width, height and depth of the model in millimetres in real time.
Open the software →Model view controls
Drag to rotate, scroll to zoom, and right-drag to pan the view.
Open the software →Dark mode
Switch the interface between light and dark to suit your working environment.
Open the software →Toolbar position
Move the control panel to the left or right to lay the workspace out the way you prefer.
Open the software →Switch language
Change the interface between Thai, English and Vietnamese instantly.
Open the software →Sign styles — pick the structure that matches the job
Each style is a different physical structure: front-lit signs, neon, light boxes, desk pieces, everyday objects and gifts, and ISO-thread nuts and bolts. Choose one and carry on adjusting its parameters.
Front-lit with sloped back ledge
Builds front-lit letters with a back plate, walls, an angle-adjustable sloped ledge and an acrylic face.
Open this style in the software →Front-lit full 3D — front and back caps fit inside
Fully 3D printed with a solid face, hollow walls and a separate U-shaped back cap that seats inside.
Open this style in the software →Thin acrylic edge, open back
Puts a thin edge around the acrylic with no back plate, so light passes straight out the back.
Open this style in the software →Thin acrylic edge, plaswood back
Puts a thin edge around the acrylic and closes the back with a plaswood sheet inserted from behind.
Open this style in the software →Double LED (halo)
Creates a double wall around the letter for LED tape, producing a halo of light around the edge.
Open this style in the software →Double LED (fullcolor)
Makes a two-layer colour-separated lit sign using only a single sheet of acrylic.
Open this style in the software →Dual ledge (front and back)
Hollow-backed letters with a ledge for the acrylic at the front and a ledge for the plaswood back panel.
Open this style in the software →Infinity LED letters
Front and back mirrors reflect the light into a deep tunnel, with the LED locking ledge built into the same piece.
Open this style in the software →Back lid
Makes a solid separate base to close the back of hollow letters, with tabs that help hold it in place.
Open this style in the software →5D lit letters
Prints the front and back caps separately, with a seating ledge and a glowing strip around the wall.
Open this style in the software →Front lip letters
Adds a lip around the face edge, holds the acrylic inside, and closes the back with plaswood.
Open this style in the software →Back-lit edge (metal letters)
Builds a rim behind metal letters for halo lighting, with a double wall and a ledge for the plaswood.
Open this style in the software →Perforated face
Punches a pattern of holes for light to pass through, with a choice of hole shape and layout.
Open this style in the software →Pingpong light
Makes open-face marquee letters with a perforated middle plate, simulated bulbs and a fitted back cover.
Open this style in the software →Die-cut lightbox
Builds a die-cut lip, outer walls, light-diffusing acrylic and a back cover for a lightbox.
Open this style in the software →Multi-color front lightbox
Creates a flat multi-colour lightbox face from SVG or text, with a colour chosen per layer.
Open this style in the software →3D mini
Small-faced letters with a flared conical base that stand up when printed, with no support material.
Open this style in the software →3D mini (solid print)
Uses the 3D mini cone shape but prints a fully solid face instead of using acrylic.
Open this style in the software →neon3d
Creates a rounded cross-section like a neon tube, hollow inside for a stiffening insert.
Open this style in the software →3D Classic
Classic chamfered face edge, hollow inside, with a ledge for the back panel.
Open this style in the software →Neon LED channel
Creates an open channel that follows the letter strokes for mounting neon flex.
Open this style in the software →Initial and name desk sign
A large initial letter with a name crossing it, split into two pieces in two colours for display.
Open this style in the software →Curved sweep desk sign
Bends the letters backwards like a sail and mounts them on a flat base for display.
Open this style in the software →Curved sweep desk sign v2
Tilts the letter faces up so they stay readable, and rolls the lower part into a fin that meets the base.
Open this style in the software →Multi-color relief
Converts a PNG or JPG into a base plate and colour-separated relief layers, ready for multi-colour 3MF printing.
Open this style in the software →Divider tray
Set the size, rows, columns, walls, floor, corner radius and magnet holes of the tray.
Open this style in the software →Ornate pattern letters
Two-colour, two-layer letters with 35 ready-made patterns, your own uploaded pattern, and a raised or cut-through finish.
Open this style in the software →Letter keychain
Makes the tag, the lettering and the ring as one piece, with four tag shapes and two-colour 3MF support.
Open this style in the software →3D keycap
Builds keycaps in 9 profiles with raised or engraved legends, fitting real Cherry MX and Kailh Choc switches.
Open this style in the software →Picture frame
Builds a frame from a preset shape or your own SVG/DXF, with a rabbet, back cover, easel feet and a hanging hole.
Open this style in the software →Nuts and bolts in 3D
A 3D nut and bolt generator with ISO metric threads — pick a size to get the full set of values, override any of them, and set the printing clearance.
Open this style in the software →Deep customisation — control every dimension to match the real material
Once a style is chosen, each one has its own set of parameters: thickness, walls, ledges, fit clearance, and the details specific to that kind of work.
Front-lit letter structure
Set the back plate, walls, acrylic ledge, depth and face thickness to match the real job.
Open this style in the software →Infinity LED letters
Set the front and back mirrors, LEDs, back cover, light channel and locking rib to build the tunnel of light.
Open this style in the software →5D face shape
Choose a curved or chamfered letter face and adjust the crown to create layered depth with a glowing strip.
Open this style in the software →Letter front lip
Adjust the width and height of the lip that wraps the acrylic edge, and set the walls, ledge and back cover.
Open this style in the software →Pingpong light letters
Set the hole layout, size and spacing, the simulated bulbs, the middle plate and the back cover.
Open this style in the software →Multi-color relief
Choose the outline shape and keyring loop, the colour layer thickness, and edit the colour or height per object.
Open this style in the software →Ornate letter patterns
Add a ready-made pattern or upload SVG, PNG or JPG, and choose a raised solid or cut-through finish.
Open this style in the software →Letter keychain
Add multiple lines of text and choose the tag shape, letter style and ring position.
Open this style in the software →3D keycap
Design a single key or a whole set, choosing the profile, face, switch stem, base and keyring loop.
Open this style in the software →Divider tray
Set the size, number of compartments, walls, floor, corner radius, lid, stacking rim and magnet holes.
Open this style in the software →Initial and name desk sign
Place the name across the initial and adjust position, angle, locking groove, connectors, thickness and stand.
Open this style in the software →Curved sweep desk sign v2
Roll the letters by angle and radius, build the base and locking groove, and optionally make it front-lit.
Open this style in the software →Picture frame design
Pick a preset frame, upload an outline or use text, then set the size, moulding profile, back cover and stand or hanger.

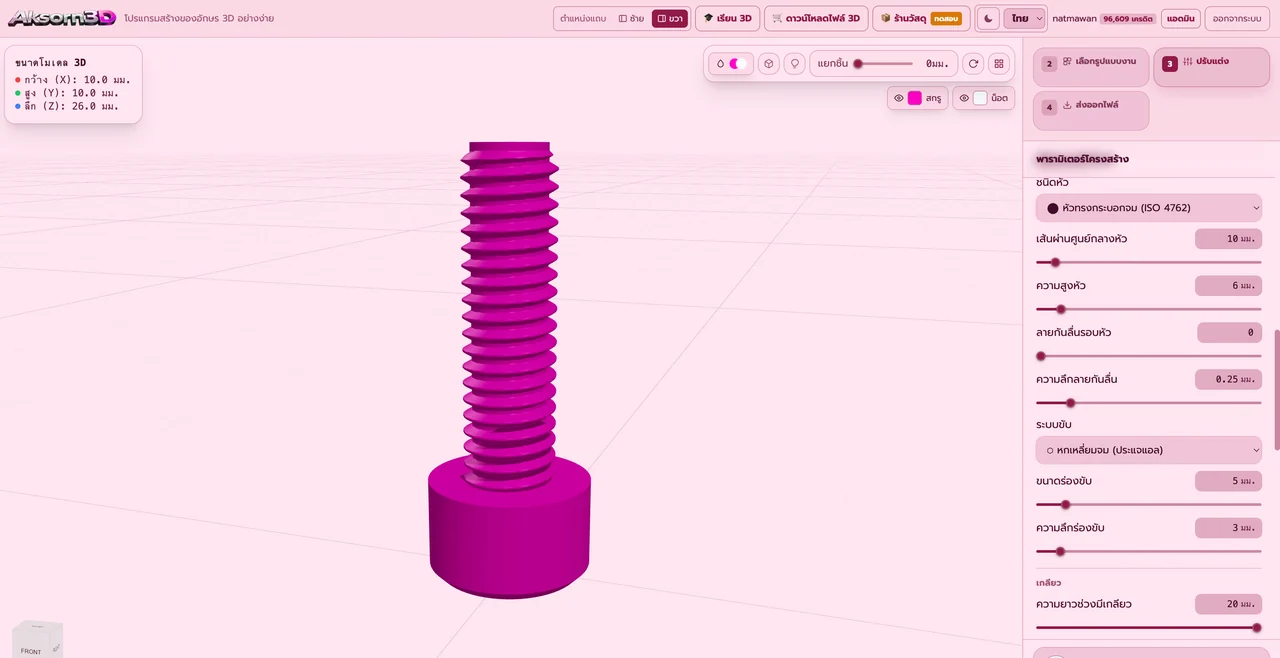

Open this style in the software →Screw head and drive type
Choose the head style and drive type, then set the head diameter, head height, knurling around the head, and the drive socket size and depth.

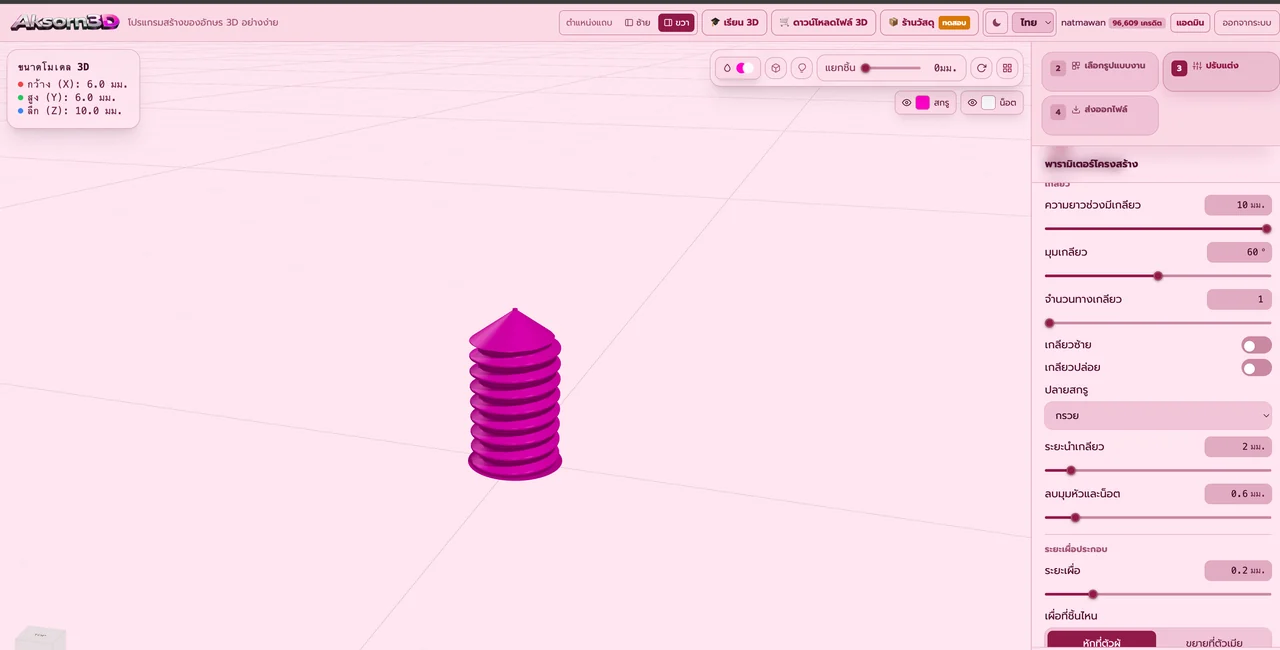

Open this style in the software →Thread and screw point
Set the threaded length, thread angle, number of starts, left-hand or self-tapping thread, the point shape, and the assembly clearance for 3D printing.

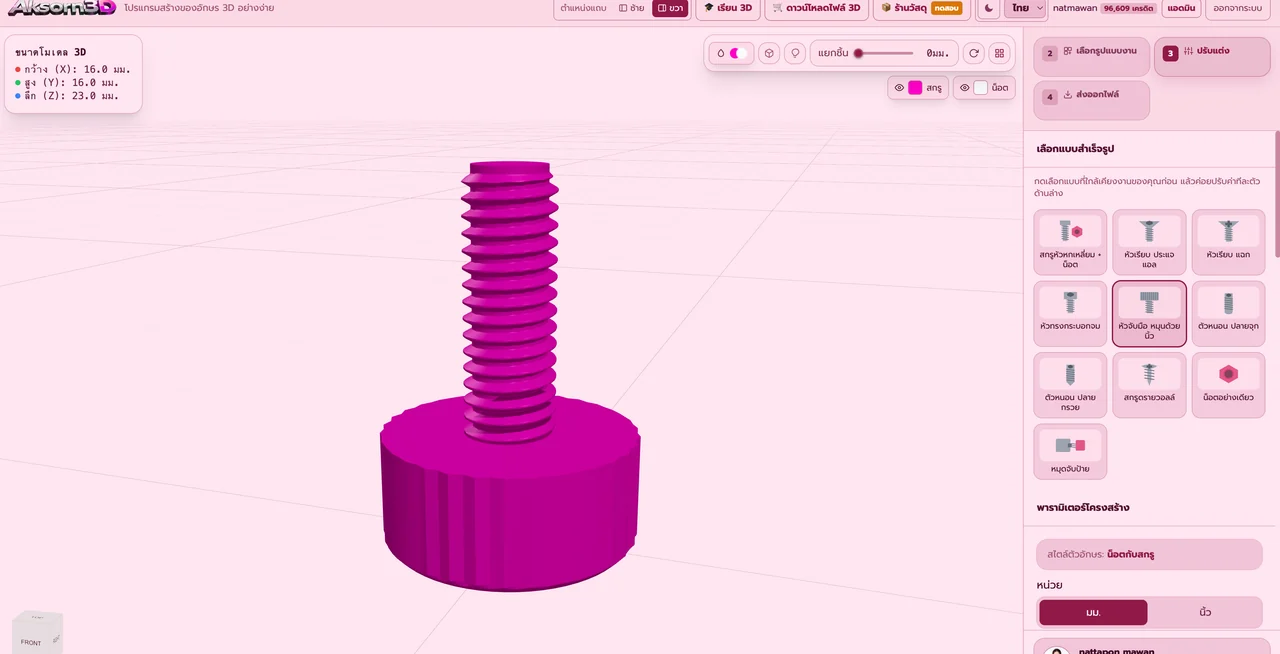

Open this style in the software →Thumb screw
A round knurled head you can tighten with your fingers, no tool needed — good for parts you take apart often.

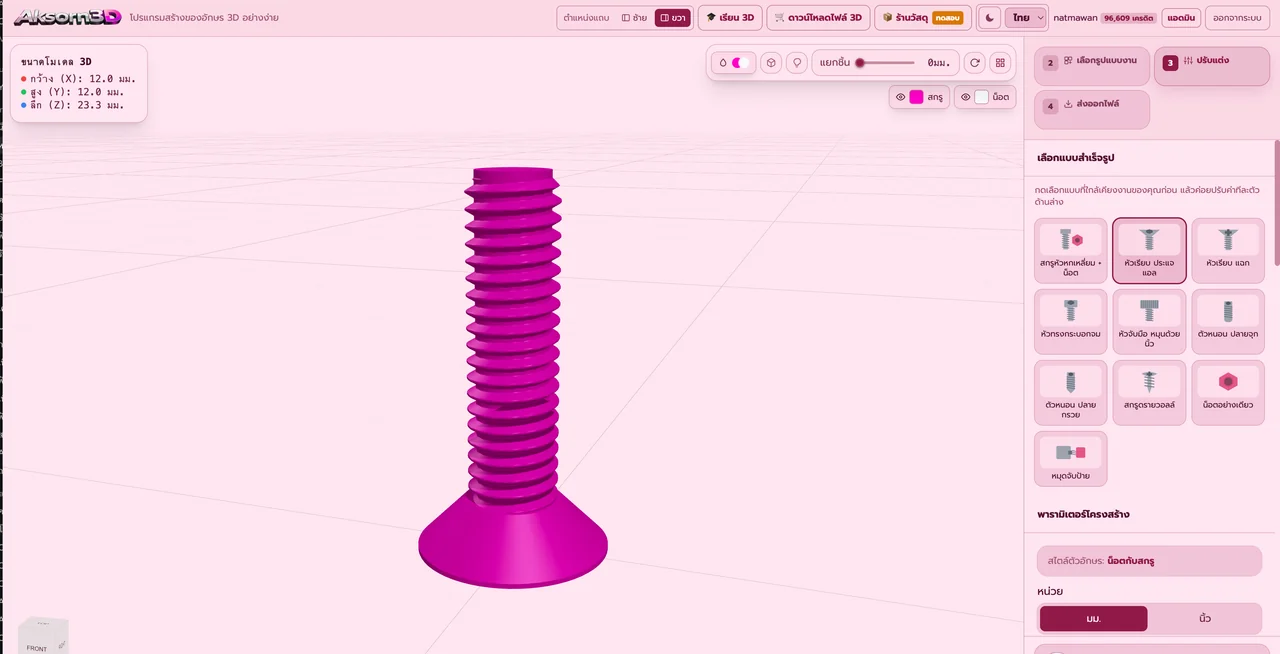

Open this style in the software →Countersunk flat head screw
A flat countersunk head with a hex socket drive that sits flush with the surface, for jobs where the head must not stand proud.

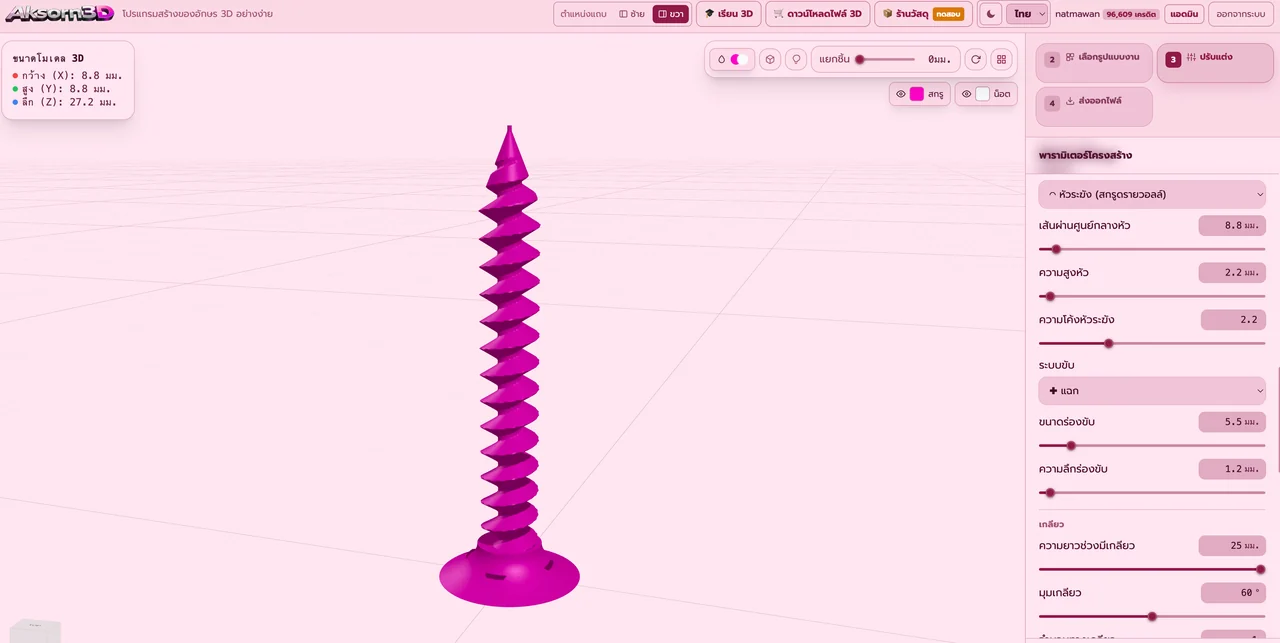

Open this style in the software →Drywall screw
A curved bugle head with a cross drive, a sharp point and the widely spaced thread used for fixing plasterboard.
Open this style in the software →Sign standoff
Builds a sleeve-and-stud sign standoff — set the sleeve diameter and length, the threaded hole depth, the front cap and the stud length.
Open this style in the software →Production files — finish with files you can actually build from
Every job ends in files that go straight to a 3D printer or a cutting machine, plus tools that work out the LED requirements and produce a quotation for your customer.
STL as one combined file
Combines every letter into a single STL, best for signs that fit on the bed in one print.
Open the software →STL split per letter
Splits the letters into separate STL files, best for printers with a limited bed area.
Open the software →DXF assembly clearance
Shrinks the acrylic pieces so they seat properly on the ledge, adjustable from 0–1 mm in 0.05 mm steps.
Open the software →Quotation
Builds a quotation from the model — add customer details, edit line items and prices, add VAT, then save as an image or PDF.
Open the software →Download everything (ZIP)
Bundles the STL files for 3D printing, the DXF files for cutting, and a README into a single ZIP.
Open the software →Download DXF only
Downloads the cut lines for acrylic, bases or other sheet parts.
Open the software →LED summary
Calculates from the real light path and reports the run length per letter, number of runs, wattage, current and the switching supply size you need.
Open the software →LED wiring plan (Beta)
Choose the LED model, light colour and driver position, then get a job summary, circuit diagram, feed points and a parts list to hand to your installer.
Open the software →Export 3MF
Exports two-colour work with the colours embedded and laid out ready to print, or bundles the 3MF together with layer-separated STL files in a ZIP.
Open the software →DXF for perforated letters
Exports two DXF files in a ZIP, separating the perforated face sheet from the clear acrylic backing sheet.
Open the software →SVG for perforated letters
Downloads SVG and DXF for cutting acrylic or metal, keeping round holes as true circles.
Open the software →Pingpong bulb summary
Counts the bulbs actually placed, breaks the count down per letter, and works out wattage, current and the switching supply size you need.
Open the software →Picture frame export
Exports the STL, DXF and README set, or downloads just the STL or just the DXF for picture frame work.
Open the software →Quick answers before you start
What features does Aksorn3D have, and how many are there?
This page lists 85 features in 4 categories: 21 core tools, 31 sign styles, 19 deep customisation panels and 14 export tools. Every image on the page is a real screenshot from the software.
Do I need to be a draughtsman or know CAD?
No. You type text or upload an SVG, choose the style that matches the job, then adjust values with sliders or by typing millimetres. The software builds the walls, ledges and assembly clearances for you, and the 3D model updates as you go.
Can the exported files go straight into production?
Yes. You get STL in millimetres for your slicer, DXF for cutting acrylic or plaswood, 3MF for two-colour work and SVG for perforated jobs, plus a README of the settings used, all in one ZIP.
How is it charged?
Credits, deducted only when you download a file. Typing text, choosing styles, adjusting values, viewing the 3D model and previewing the lighting are all free and unlimited. New accounts get 100 free credits.
Does it work out the LED requirements?
There are two tools for that. The LED summary calculates from the real light path and reports run length per letter, number of runs, wattage, current and the switching supply size. The LED wiring plan (Beta) produces a circuit diagram, feed points and a parts list to hand to your installer.
Does it really support Thai?
It supports Thai, English and Vietnamese, with vowels and tone marks placed correctly. Choose from several ready-made fonts, or upload your own .ttf/.otf file.
Found the feature you need? Open it and try it
Typing text, choosing a style, adjusting parameters and viewing the 3D model are all free and unlimited. Credits are only deducted when you download a file.
